| Model | Description | Dimensions (mm) | Weight (kg) | Gas Power (kW) | Pack. Dim. / Gross Weight (mm / kg) |
|---|---|---|---|---|---|
| GKW9010 | 1 Gas Wok Burner | 400x900x280 | 39 | 13.500 | 420x960x530 / 47 |

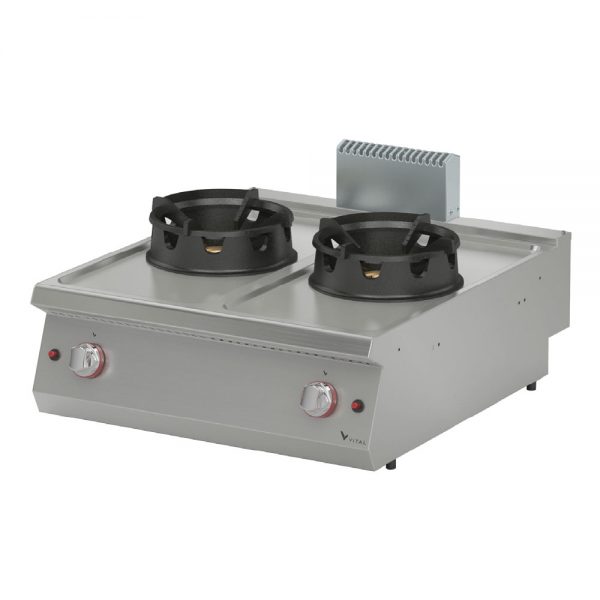

| GKW9020 | 2 Gas Wok Burner | 800x900x280 | 68 | 27.000 | 820x960x530 / 78 |
| GKW9030 | 3 Gas Wok Burner | 1200x900x280 | 96 | 40.500 | 1220x960x530 / 112 |
| Model | Gas Consumption (NG) | Gas Consumption (LPG) | Gas Inlet (inch) |
|---|---|---|---|
| GKW9010 | 1.429 m³/h (max), 0.750 m³/h (min) | 1.065 kg/h (max), 0.559 kg/h (min) | R 3/4” |
| GKW9020 | 2.857 m³/h (max), 1.500 m³/h (min) | 2.129 kg/h (max), 1.118 kg/h (min) | R 3/4” |
| GKW9030 | 4.286 m³/h (max), 2.250 m³/h (min) | 3.194 kg/h (max), 1.667 kg/h (min) | R 3/4” |
